50+ Next-gen Call Amenities

50+ Next-gen Call Amenities
  • Abbreviated Dialing, Call Pick Up and Internal Call Restriction
  • One-touch Transfer and Hotline
  • Advanced Call Routing
  • Call Recording and Voicemail
  • Caller ID and Call Forwarding
50+ Next-gen Call Amenities

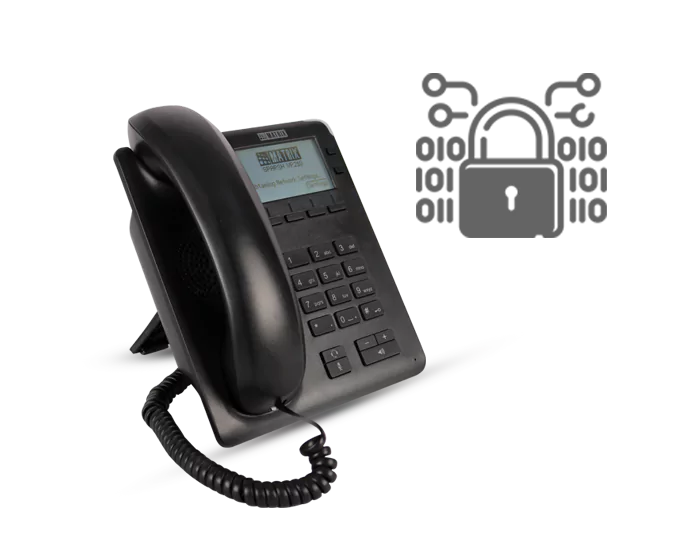

Easy and Secure Communications

Easy and Secure Communications
  • Secure VoIP Communication
  • TLS/SRTP for Voice Security
  • Dynamic Lock and PIN Dialing
  • User Authentication and Access Control
Easy and Secure Communications

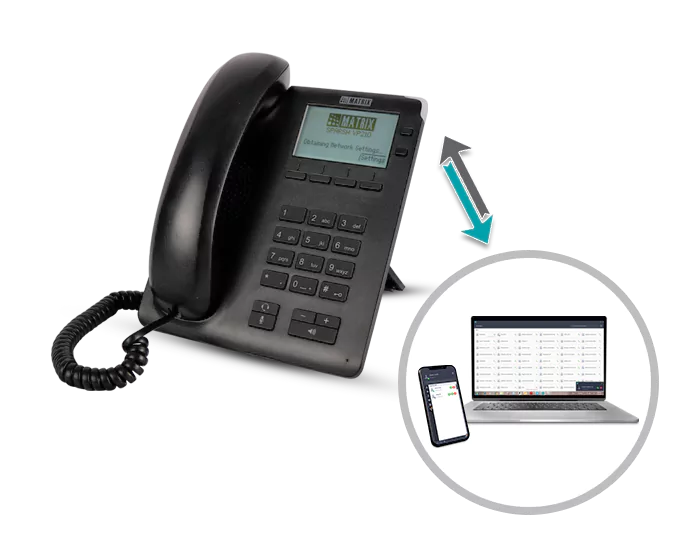

World-class Integration and Interoperability

World-class Integration and Interoperability
  • Seamless Integration with Leading PBX Systems
  • Support for Multiple VoIP Protocols
  • Interoperability with Third-party Communication Solutions
  • COSEC Door Integration
  • Barge-in
World-class Integration and Interoperability

Features

128 x 64 Graphical LCD

128 x 64 Graphical LCD

Crystal clear graphical display provides enhanced user experience

128 x 64 Graphical LCD

Intuitive User Interface with Icon

Intuitive User Interface with Icon

Experience seamless and user-friendly navigation

Intuitive User Interface with Icon

Power on Ethernet (IEEE 802.3af)

Power over Ethernet (IEEE 802.3af)

Enables convenient and simplified installation

Power on Ethernet (IEEE 802.3af)

4 Context-sensitive Keys

4 Context-sensitive Keys

Quick and easy access to relevant functions based on the user's current context

4 Context-sensitive Keys

3 Feature Keys and Fixed Function Keys

3 Feature Keys and Fixed Function Keys

Efficient navigation and quick access to essential phone features

3 Feature Keys and Fixed Function Keys

Adjustable Desk Mount

Adjustable Desk Mount

Enables flexible positioning and comfortable use

Adjustable Desk Mount

TLS-SRTP for Voice Security

TLS/SRTP for Voice Security

Secure and confidential voice communication

TLS-SRTP for Voice Security

Full Duplex Speakerphone

Full Duplex Speakerphone with VAD, CNG, AEC, AJB & AGC

Enables an experience of superior audio quality and clarity

Full Duplex Speakerphone

Dynamic Lock and PIN Dialing

Dynamic Lock and PIN Dialing

Dynamically adjust access permissions based on user roles and real-time conditions

Dynamic Lock and PIN Dialing

Request a QuoteRequest CallBack

Applications

Unified Communications

Unified Communications

Unified Communications

Hybrid Communications

Hybrid Communications

Hybrid Communications

Mobile Extension Communications

Mobile Extension Communications

Mobile Extension Communications

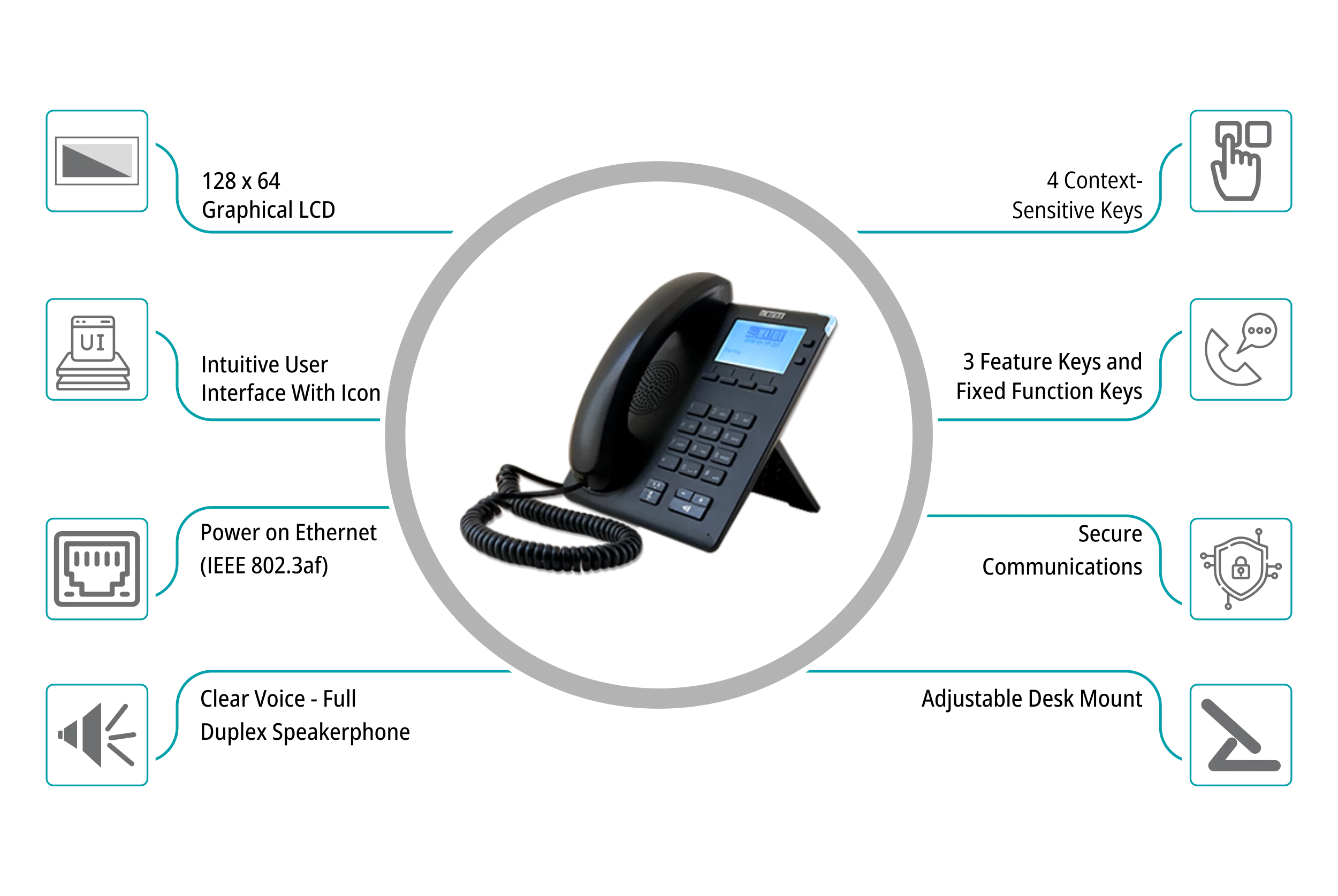

Interface Diagram

SPARSH VP210 Interface Diagram

Technical Specifications

Parameters

  • Specifications

Audio Features

  • Codec: G.722, G.711(A/µ), G.729, G.726, G.723
  • DTMF: In-band, Out-of-band (RFC 2833)
  • SIP INFO
  • Full-duplex hands-free speakerphone with AEC, VAD, CNG, AEC, AJB, AGC

Phone Features

  • Abbreviated Dialing, Call Pick Up and Internal Call Restriction
  • Call Hold, Mute and DND
  • One-touch Transfer and Hotline
  • Redial, Auto Call Back (ACB) and Auto Answer
  • Call Forward, Call Waiting and Call Transfer
  • 3-way Conferencing and Multi-party Conference
  • Emergency Call and Conferencing

Display

  • 128 x 64 Graphical LCD
  • LED for Call, Message Wait Indication
  • Intuitive user interface with Icon

Networking and Security

  • Extended (Proprietary) SIP Protocol
  • IP assignment: Static, DHCP, SRTP, TLS
  • QoS: 802.1p/Q tagging (VLAN)

Physical Features

  • Desk mount
  • External AC Adaptor (Optional): AC 100~240V Input & DC 5V/600mA output
  • Dimension (W x H x D): 163 x 210 x 101 mm

Installation

  • Desk mount

Environmental

  • Operating Temperature: 0° C to 45°C
  • Operating Humidity: 10 – 95% (Non-condensing)

Certifications

  • CE, FCC-15 (Class B), RoHS

Certifications

CE
RoHS
FCC
