Parameters
- Specifications
Products
Next-gen Call Amenities

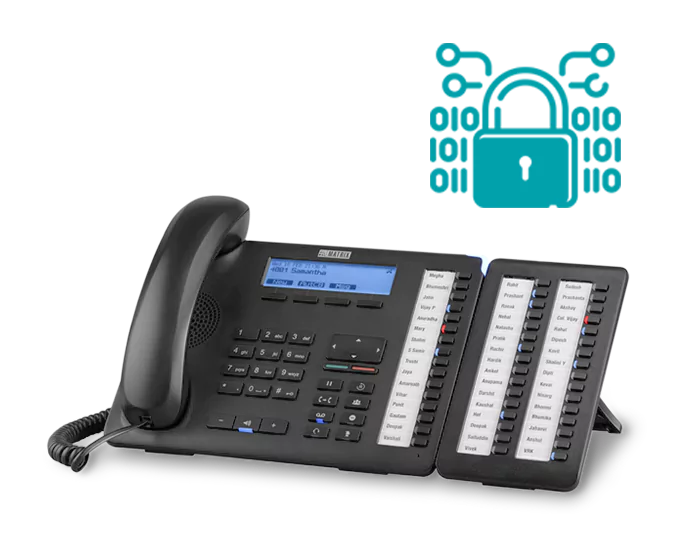

Enhanced Network Security and Structure

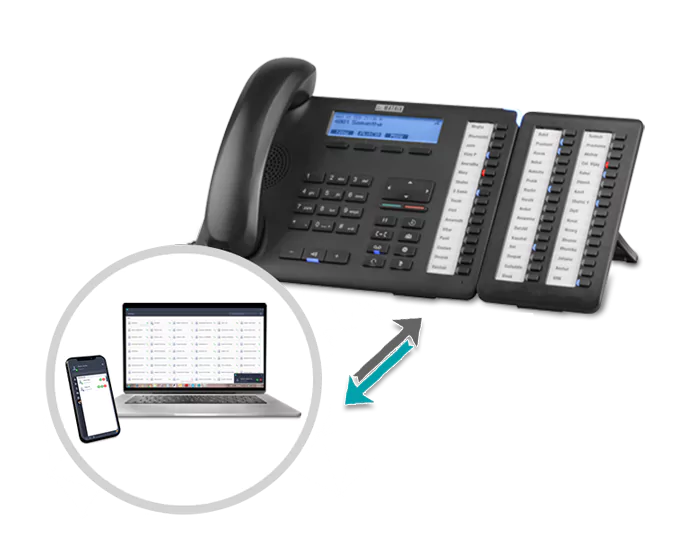

Redefined Call Management and Mobility
Features
240 x 64 Graphical LCD with Backlit
Crystal clear graphical display provides enhanced user experience
Built-in 16 DSS Keys for Feature, Line, and Extension
One-touch easy access to different line extensions
Power over Ethernet (IEEE 802.3af)
Enables convenient and simplified installation
4 Context-sensitive Keys
Quick and easy access to relevant functions based on the user's current context
Alphanumeric Dial Pad Keys
Convenient and efficient dialing of numbers, letters, and characters
Message Wait and Ringer Lamp
Provides visual indicators for new messages and incoming calls, ensuring important notifications are easily noticed
Full Duplex Speakerphone
Enables an experience of superior audio quality and clarity
Headset Interface - 3.5mm, RJ9
Enables seamless integration with compatible headsets, providing hands-free communication
Adjustable Desk Mount
Enables flexible positioning and comfortable use
Interface Diagram
Technical Specifications
DSS532 - IP/DSS Console for IP/Digital Phones
Audio Features
- Codec: G.711(A/µ), G.722, G.723, G.729, iLBC
- Full-duplex hands-free speakerphone with AEC, AJB, AGC
Phone Features
- Call Hold
- Mute
- Do Not Disturb
- Speed Dial
- Hotline
- Redial
- Call Back
- Auto Answer
- Call Forward
- Call Waiting
- Call Transfer
- Room Monitoring
- Conference
- Directory
- Call Logs
- Paging
- Dial-by-Name
Call Management
- Message Wait Lamp
- Ringer Lamp
- Voice Mail
- Call Pickup – Group and Selective
- Paging
Display
- 240*64 Pixels Graphical LCD with Backlit
- LED for Incoming/Ongoing Call, Mute and Hold
- Intuitive User Interface with Icons
- Multiple Languages
- Caller ID with Name and Number
Networking and Security
- SIP v2 (RFC3261)
- IP Assignment: Static/DHCP/PPPoE
- QoS: 802.1p/Q Tagging (VLAN),
- Layer 3 ToS, DSCP
- SRTP for Voice
- Transport Layer Security (TLS)
- AES Encryption for Configuration File
- Digest Authentication using MD5
- IEEE802.1X
Physical Features
- 49 keys including 4 Context Sensitive Keys
- 1 x RJ9 Handset Port
- 1 x RJ9 Headset Port
- Dimension (L x B x H): 247 x 183 x 43 mm
Power Supply
- Power Adapter: 5VDC/600mA
- Power over Ethernet (IEEE 802.3af)
- Power Consumption: 5W (Typical)
- Connector: DC Power Jack
Mechanical
- Weight: 0.805 Kgs
- Installation: Wall Mount, Table-top
- Color: Black
Environmental
- Operating Temperature Range: 0° to 45°C
- Storage Temperature: 0° to 55°C
- Operating and Storage Humidity: 5 – 95% RH, Non-Condensing SNMP v1/v2g
Certifications
- CE, FCC-15, RoHS
